1) C-19 BMW 11000140992 OEM 256S5 (USED) M54 2.5L ENGINE M54B25 FROM: 2003 BUILT APRIL E46 325Ci COUPE Euro All Parts

LOCATION: C

M54 6 cyl engine

FROM:  e46 coupe JY96296
2003 BUILT APRIL E46 325Ci COUPE

86 K MILES

FULL DISCLOSURE

THIS CAR SAT FOR SEVEN YEARS IN STORAGE.

WE DISMANTLED IT FOR THE SWAP KIT.

WE TOPPED UP THE OIL, PUT IT IN GEAR AND TOWED IT AROUND THE YARD.

WE PUT TWO BATTERIES ON IT AND CRANKED IT AND IT STARTED AND RAN.

HAS NO CODES, LEAKS OR ISSUES THAT WE COULD DETECT.

HAD GOOD POWER AND RAN QUITE - COOLANT CLEAN, OIL CLEAN, EXHAUST CLEAN

Scroll down for more details or e-mail your questions to: info@euroallparts.com

Short Engine    256S5    1    09/2002        11000140992
11000140992
Short Engine
256S5
From:09/01/2002 To:-
Weight:126.000 kg

Supersedes:
11007506888(09/01/2000 — 10/13/2004), Exchangeable retrospectively
11007506882(09/01/2000 — 07/22/2003)
Part 11000140992 was found on the following vehicles:
3' E46   (01/2000 — 12/2018)
Z4 E85   (01/2002 — 11/2005)

BMW 11-00-0-140-992
Short Block - BMW (11-00-0-140-992)
2003-2006 BMW - 11000140992

Short Block - BMW (11-00-0-140-992)

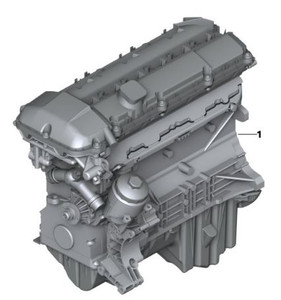

IMAGE IS NOT A REPRESENTATION OF THE ACTUAL PRODUCT

BMW DEALER LIST PRICE:    $9,245.94

SKU:    11-00-0-140-992
Other Names:    Rp Engine 110510
Description:    Without sulev. New. Z4. 2.5l. 325i, ci.

Applications:    2.5L, 3.0L (2003-05). 6 CYLINDER, DUAL TIMING CHAIN.
Sold In Quantity:    1

VEHICLE FITMENT
Year    Make    Model    Body & Trim    Engine & Transmission
2006    BMW    325Ci    Base    2.5L L6 - Gas
2005    BMW    325Ci    Base    2.5L L6 - Gas
2005    BMW    325i    Base    2.5L L6 - Gas
2005    BMW    Z4    2.5i    2.5L L6 - Gas
2004    BMW    325Ci    Base    2.5L L6 - Gas
2004    BMW    325i    Base    2.5L L6 - Gas
2004    BMW    Z4    2.5i    2.5L L6 - Gas
2003    BMW    325Ci    Base    2.5L L6 - Gas
2003    BMW    325i    Base    2.5L L6 - Gas
2003    BMW    Z4    2.5i    2.5L L6 - Gas
(10 fitments)


The BMW M54 is a naturally aspirated straight-6 petrol engine produced from 2000 to 2006. It was released in the E53 X5[1] and is the replacement for the M52 engine. The S54 is the equivalent high performance engine, used in the E46 M3, the Z3 M Coupé/Roadster and the E85/E86 Z4 M. The BMW M56 SULEV engine (sold in several states of the United States) is based on the M54.

compared with the final versions of its M52 predecessor (called the 'M52TU'), the M54 has a non-return fuel system, a fully electronic throttle (without mechanical backup),[1][2] Siemens MS 43 engine management,[3] a revised intake manifold.[4] The displacement of the largest variant increased from 2.8 L to 3.0 L (2,979 cc), due to an increase in stroke to 89.6 mm (3.53 in).

As per the M52TU, the M54 uses an aluminium block and aluminium cylinder head with cast iron cylinder liners. Variable valve timing is fitted to both camshafts[5] (called "double-VANOS"), a dual length intake manifold (called "DISA") is used and the thermostat is electronically controlled. The redline remains at 6,500 rpm.

There was no "technical update" (TU) version of the M54 produced, therefore the engine specifications remained the same throughout its seven-year production run.

M54B25    2.5 L (2,494 cc)    141 kW (189 hp)at 6,000 rpm    245 N·m (181 lb·ft)at 3,500 rpm    2000–2006

M54B25
The 2,494 cc (152.2 cu in) M54B25 produces 141 kW (189 hp) at 6,000 rpm and 245 N·m (181 lb·ft) at 3,500 rpm.[6] Bore is 84 mm (3.3 in), stroke is 75 mm (3.0 in) and the compression ratio is 10.5:1.

Applications
2000–2002 E36/7 Z3 2.5i
2000–2006 E46 325i, 325xi, 325Ci
2000–2004 E46/5 325ti
2000–2004 E39 525i
2003–2005 E60/E61 525i, 525xi
2003–2006 E83 X3 2.5i
2002–2005 E85 Z4 2.5i

NOTE: All engines, transmissions that ship by truck are special order.

Special order quotes Includes shipping unless pickup specified.

Reply with ship to address.

NOTE: We quote replacement engine configuration;

Long Block with intake.

    Head, block, pan, harness, intake – ready to install.

Unless instructed otherwise

    No accessories, flywheel  or ecu
     Engine is used and not refurbished unless noted on listing
     Used engines are out of running driving cars
     No leaks, noises or codes unless noted on listing
     Shipped shrink wrapped on a skid



NOTE: Transmissions are shipped in Rubbermaid Totes on Skids



For accurate quote - Send your application details with ship to address.



Note:

International and off shore orders – we ship to the closest deep water port.

Pickup at the dock or arrange final delivery with Agent.

You are responsible for all customs, duties, port fees and taxes.



North American orders – we ship to the nearest Truck terminal.

You are responsible for any late pick up charges or storage fees.

You can pickup or arrange final delivery to your exact location directly with the shipper.

Weight bills and tracking are provided.

Shipping dates are confirmed on day of order.

Cancel anytime before shipping – subject to re-stocking fee.



Australia & New Zealand orders – A fumigation surcharge of $800 per shipment applies year round.

More info: https://www.agriculture.gov.au/import/before/brown-marmorated-stink-bugs

- If you have question regarding: fitment, availability, condition, delivery or any other question about this or any other part, please e-mail us: " info@euroallparts.com "
