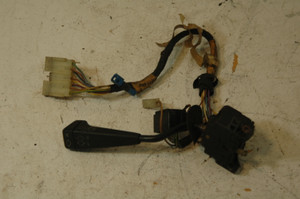

1) DH-29 BMW 1374803 (USED) E4456.3 OEM LK 9115 61311377082 61-31-1-377-082 TURN SIGNAL HIGH BEAM OBC SWITCH (NO AIRBAG) 1986-1989 E24 635CSi M6 L6 Euro All Parts

LOCATION: DH W1R4S3C14

LK 9115

OBC COMPATIBLE
HELLA RELAY TBB67DOT
4DB003750-14
71408
61.31 1371908

SAE QB 82
LK 9115

BLUE PLUG WITH SINGLE FLAT PIN
WIDE FLAT DOUBLE ROW PLUG
4 ROUND PINS TOP
4 ROUND PINS BOTTON
5 EMPTY

GROUND RING WIRE

SINGLE PLUG WITH FLAT PIN RECEIVER

E4456.3
1374803

LK 9115


OBC SWITCH
WITH CLOCK SPRING SWITCH
FOUR FLAT PIN RELAY SOCKET
WIDE FLAT PLUG
5 TOP ROUND PINS
4 BOTTOM PINS
4 EMPTY
SINGLE BLUE PIN SOCKET

THIS PART HAD SEVERAL VARIATIONS OVER IT'S PRODUCTION:
IT HAS TO MATCH THE OPTIONS ON YOUR CAR TO FUNCTION PROPERLY
YOU HAVE TO TAKE YOUR UNIT OFF THE CAR - TAKE PICTURES AND SEND THEM TO US WITH YOUR VIN# SO WE CAN MATCH IT UP.
OTHERWISE YOU WILL PROBABLY ORDER THE WRONG ONE.

THE ORIGINAL PART NUMBER WAS PRINTED ON A PIECE OF ADHESIVE BACKED TAPE AND WRAPPED AROUND THE WIRING CHORD.
OFTEN THEY ARE REMOVED, DAMAGED, MISSING OR UNREADABLE.
IF THE TAPE IS THERE BUT UN READABLE YOU CAN OFTEN PEEL BACK THE TAPE AND FIND THE PART NUMBER PRINTED UNDERNEATH.
BMW AND REAL-OEM WEBSITES DO NOT RECOGNIZE THESE NUMBERS 9 OUT OF 10 TIMES.

IF MY PART NUMBERS MATCH WHAT YOU HAVE - THE PART WILL FIT.
IF YOU DO NOT HAVE OR CANNOT READ THE PART NUMBER YOU HAVE TO COMPARE WHAT YOU HAVE TO MATCH IT.
FIRST COMPARE THE PLUGS:
- IS THERE THE SAME NUMBER OF PLUGS?
- IS THE OVERALL SHAPE OF THE PLUGS THE SAME AND WILL IT FIT THE SOCKET IN YOUR CAR?
- IS THERE THE SAME NUMBER OF PINS?
- ARE THE PINS THE EXACT SAME SIZE AND LENGTH AS YOURS?
- ARE THE PINS IN THE SAME ORDER AND PLACEMENT IN THE PUG?
- ARE THERE THE SAME NUMBER OF WIRES GOING INTO THE PLUG?
- ARE THE WIRES THE SAME COLOURS AS YOURS IN THE SAME POSITION?
NEXT:
IS THERE A RELAY PLUG?
IS IT THE SAME RELAY OR THE SAME RELAY PLUG AS YOU HAVE?
NEXT:
IS THE STALK AND HANDLE THE SAME SHAPE AND SIZE?
ARE THE MOUNTING HOLES IN THE EXACT SAME PLACE?
IS THE PRINTING ON THE HANDLE THE SAME OR VERY SIMILAR?

IF YOU SAID YES TO ALL THESE THINGS - THIS SWITCH WILL PROBABLY WORK ON YOUR CAR.
IF NOT - DON'T BUY IT!!!!!!

IF YOU WANT US TO VERIFY OR FIND YOU THE RIGHT ONE - EMAIL US PICTURES OF YOUR PART.
NOTE THAT WE NEED TO SEE ALL THE ABOVE PIECES TO BE SURE AND INCLUDE YOUR vin #

Scroll down for more details or e-mail your questions to: info@euroallparts.com


1) DH-29 BMW 1374803 (USED) E4456.3 OEM LK 9115 61311377082 61-31-1-377-082 TURN SIGNAL HIGH BEAM OBC SWITCH (NO AIRBAG) 1986-1989 E24 635CSi M6 L6 Euro All Parts

- If you have question regarding: fitment, availability, condition, delivery EMAIL US " info@euroallparts.com "

61311377082
Switch turn signal,dip-dim control
From:09/01/1985To:-Weight:0.174 kg

Part 61311377082 was found on the following vehicles:
6' E24   (08/1984 — 04/1989)

 BMW 61-31-1-377-082
Turn Signal Switch - BMW (61-31-1-377-082)
1986-1989 BMW - 61311377082

BMW logo
NO IMAGE AVAILABLE

BMW DEALER LIST PRICE:    $430.74

SKU:    61-31-1-377-082
Other Names:    Combination Switch, Switch Turn Signal Dip Dim C H61310
Description:
With computer. 633CSi, 635CSi. Dimmer,Turn Signal. Exc.Air Bag. Multi-Function Display. M6.

Sold In Quantity:    1
Warning WARNING: California Proposition 65
ALSO PURCHASED
VEHICLE FITMENT
Year    Make    Model    Body & Trim    Engine & Transmission
1989    BMW    635CSi    Base    3.5L L6 - Gas
1988    BMW    635CSi    Base    3.5L L6 - Gas
1988    BMW    M6    Base    3.5L L6 - Gas
1987    BMW    635CSi    Base    3.5L L6 - Gas
1987    BMW    L6    Base    3.5L L6 - Gas
1987    BMW    M6    Base    3.5L L6 - Gas
1986    BMW    635CSi    Base    3.5L L6 - Gas
(7 fit
